specs. H I J K L M N O 2" Weld-On 2.44 0.37 1.91 2.01 0.28 1.97 2.17 2.76 3" Weld-On 3.48 0.51 2.99 3.07 0.55 3.19 2.87 3.86 4" Weld-On 5.20 0.59 4.25 4.37 0.59 4.41 4.21 5.71 5" Weld-On 5.98 0.71 5.20 5.39 0.67 5.39 3.78 6.26 6" Weld-On 6.69 0.75 6.22 6.42 0.75 6.10 4.06 7.09 8" Weld-On 8.66 0.75 7.64 7.87 0.67 7.87 5.00 9.06 Specifications to 1/100th of an inch | Specifications Subject to Change



Specifications

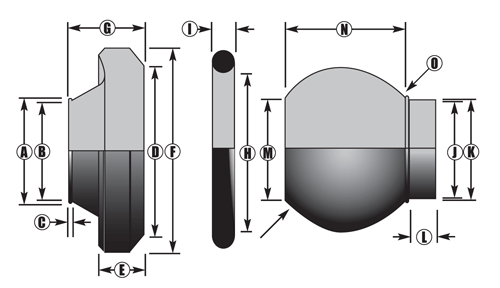

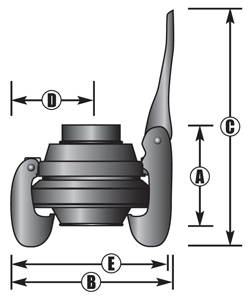

B-Style Black Steel Weld-Ons vacuum rating 30 inches hg psi rating 2 & 3 inch = 290 psi   4 - 8 inch = 175 psi weld-on set specs. A B C D E 2" Weld-On Set 2.68 6.10 7.09 3.35 4.92 3" Weld-On Set 3.43 7.87 9.25 3.54 7.09 4" Weld-On Set 5.28 11.81 10.83 6.69 9.25 5" Weld-On Set 4.69 11.22 11.42 5.51 10.83 6" Weld-On Set 4.84 12.60 13.50 6.30 11.81 8" Weld-On Set 6.30 15.35 13.50 9.06 13.98 Specifications to 1/100th of an inch | Specifications Subject to Change   specs. A B C D E F G 2" Weld-On 2.01 1.91 0.24 2.83 0.67 3.27 1.22 3" Weld-On 3.07 2.99 0.28 3.86 0.87 4.57 1.46 4" Weld-On 4.37 4.25 0.47 5.79 1.10 6.50 2.32 5" Weld-On 5.39 5.20 0.47 6.42 1.34 7.52 2.13 6" Weld-On 6.42 6.22 0.59 7.17 1.34 8.31 2.05 8" Weld-On 7.95 7.64 0.71 9.09 1.34 10.51 2.99 Specifications to 1/100th of an inch | Specifications Subject to Change

TECH TIP

Virtually any plumbing configuration may be fabricated using the Wil-loc Carbon Steel Weld-On Fittings. Please check columns A and K for correct pipe sizing. IPSO and ODA pipe may be used with steel weld-on fittings. When fabricating customized fittings, ensure there is enough length for the locking levers to fully close without restriction. The minimum shank lengths are given on the flange specifications pages of this catalog.
