Specifications

Wil-loc B-Style Hose Tails

vacuum rating	30 inches hg
psi rating	2 & 3 inch = 290
	4 - 8 inch= 175
number of ribs	2 & 3 inch = 2
	4 - 8 inch= 3

lever mechanical specs.	A	B	C	D	E
2" 50x50mm	7.09	3.35	4.92	3.94	2.44
3" 76x76mm	9.25	3.54	7.09	5.31	3.43
4" 108x100mm	10.83	6.69	9.25	7.48	5.20
5" 133x125mm	11.41	5.51	10.83	8.07	5.91
6" 159x150mm	13.39	6.30	11.81	9.06	6.69
8" 194x200mm	13.19	9.06	13.98	10.04	8.66
Hose Set Specifications to 1/100th of an inch \| Specifications Subject to Change

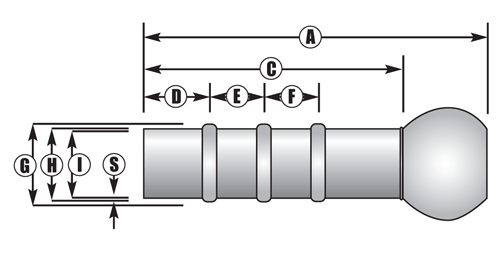

male mechanical specs.	A	B	C	D	E	F	G	H	I
2" 50x50mm	6.50	0.06	4.33	0.98	1.38		2.09	1.97	1.85
3" 76x76mm	8.07	0.06	5.31	1.38	1.38		3.11	2.99	2.87
4" 108x100mm	11.42	0.07	7.28	1.38	1.77	1.77	4.09	3.94	3.80
5" 133x125mm	11.61	0.07	7.87	1.38	1.77	1.77	5.08	4.92	4.78
6" 159x150mm	12.40	0.07	8.46	1.57	1.97	1.97	6.06	5.91	5.77
8" 194x200mm	14.96	0.08	9.84	1.97	2.36	2.36	8.11	7.87	7.71
Hose Set Specifications to 1/100th of an inch \| Specifications Subject to Change

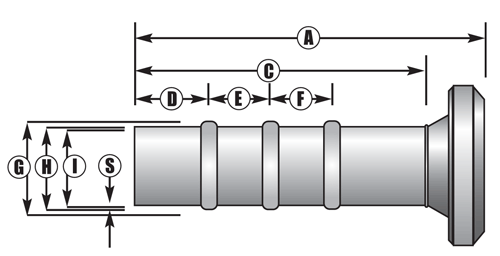

female mechanical specs.	A	C	D	E	F	G	H	I	S
2" 50x50mm	5.51	4.33	0.98	1.38		2.09	1.97	1.85	0.06
3" 76x76mm	6.69	5.31	1.38	1.38		3.11	2.99	2.87	0.06
4" 108x100mm	9.45	7.28	1.38	1.77	1.77	4.09	3.94	3.80	0.07
5" 133x125mm	10.04	7.87	1.38	1.77	1.77	5.08	4.92	4.78	0.07
6" 159x150mm	10.43	8.46	1.57	1.97	1.97	6.06	5.91	5.77	0.07
8" 194x200mm	12.99	9.84	1.97	2.36	2.36	8.11	7.87	7.71	0.08
Hose Set Specifications to 1/100th of an inch \| Specifications Subject to Change

TECH TIP

Wil-loc Couplings have a higher working pressure rating than typical Cam-lock or other quick action couplings. Typical Cam-lock: 2"=250psi, 3"=125psi, 4"=100psi, 5"=75psi and 6"=75psi. Check with your manufacturer for specific ratings.
